HGS2 Decoiler Straightener Feeder Machine 3-in-1

HUAGONG MACHINE, a leading manufacturer of coil handling equipment that specializes in providing coil feeding solutions for metal processing. Our product line includes a wide range of high-quality machinery such as decoilers, straighteners, feeders, and complete lines. With our state-of-the-art technology and expertise in coil handling, we strive to optimize productivity and efficiency in metal stamping operations. At HUAGONG MACHINE, we go beyond just providing equipment. We offer free technical consulting to help our clients find the best solutions for their specific needs. Our team of experts is dedicated to providing personalized coil solutions tailored to your requirements. Additionally, we offer customized spare parts and comprehensive after-sales service to ensure the-term performance and reliability of our equipment. One of the key advantages of partnering with us is our global presence. We have agents and support in different countries, allowing us to offer prompt assistance and support wherever you are located. Whether you need a coil banking line, decoiler straightener feeder, coil feed line, press feed line, turkey metal stamping line, servo feeder, decoiler, uncoiler, straightener machine, stamping press machine, power press machine, destacker and transfer system, 3D transfer system, destacking/stacking systems, robot integration systems, we have the expertise and resources to meet your requirements.

Category:

Model : HGS2 Decoiler Straightener Feeder Machine 3-in-1



3 In 1 NC Servo Straightener Feeder W/Uncoiler

Save Looping Space, Increase Safety Coiled material is from uncoiler through both left and right free guide rollers with advance photo sensors keeps looping. Through the opener device and bending roller system feeding the coiled material from up to down, passing opener device, coil tip flatness device, pinch rollers, work rollers, feed rollers to make the coiled material passing in an excellent smooth feeding.

Specification of  HGS2:

  • Width: 400-1600mm
  • Thickness:0.3-3.2mm
  • Working rollers :9  (upper 5/lower 4)

Actual Picture of Equipment (For reference only):

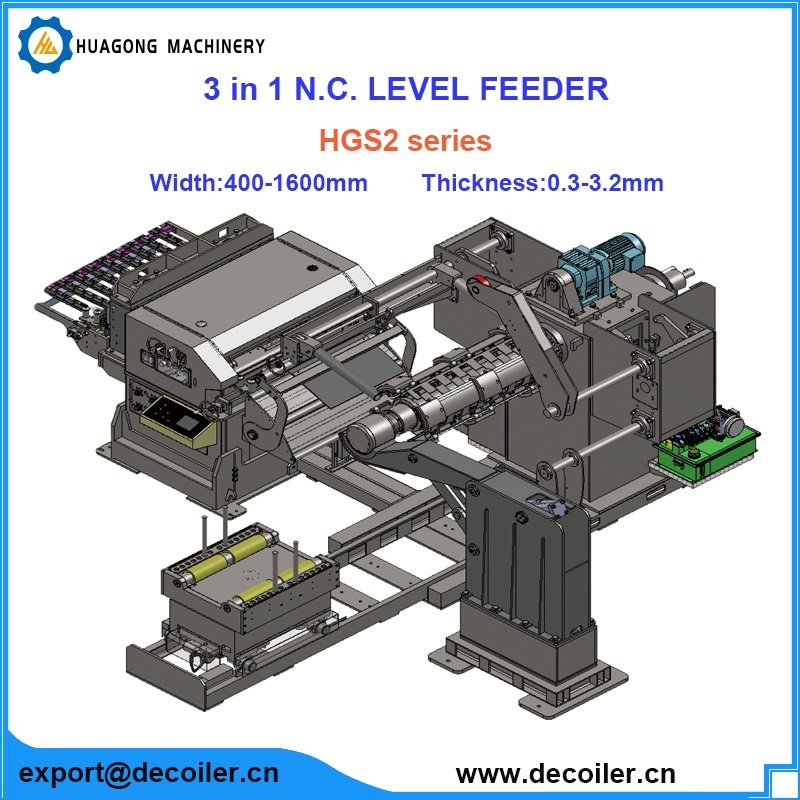

HGS2-Uncoiler-decoiler-Straightener-Feeder-Machine-3-IN-1

straighter feeder uncoiler 3 in 1 machine - HGS2



Technical Parameters



Model HGS2-400 HGS2-600 HGS2-800 HGS2-1000 HGS2-1300
Material width (MM) 75-400 75-600 75-800 75-1000 75-1300
Material thickness (MM) 0.3-3.2 0.3-3.2 0.3-3.2 0.3-3.2 0.3-3.2
Coil weight Max. (KG) 3000KG 5000KG 6000KG 8000KG 10000KG
Coil O.D. Max (MM) 1200 1200 1200 1200 1200
Coil I.D. (MM) 508 508 508 508 508
Feed length (MM) 9999.9 9999.9 9999.9 9999.9 9999.9
Feed speed (m/min) 24 24 24 24 24
Work roller(pc) 2* upper5/lower4 upper5/lower4 upper5/lower4 upper5/lower4 upper5/lower4
Feed roller(set) 1 1 1 1 1
Main motor (KW) AC1.8 AC2.9 AC4.4 AC5.5 AC7.5
Decoil motor (KW) 1.5 2.2 3.0 4.0 5.5
Coil expansion Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Power supply (V) 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ 3Phase 220V/380V/50HZ
Operating air (Mpa) 0.5 0.5 0.5 0.5 0.5

Correction ability reference table (yield point stress 275N/mm2)

3 In 1 NC Servo Straightener Feeder With Uncoiler HGS2 - Correction ability reference table

Features and Advantages of HuaGong 3-in-1 decoiler Straightener feeder

1. Direct Factory  Sale

2. Quick Delivery
3. Simple Operation
4.Correction Accuracy
5. Fast and Efficient
6.Save Manpower
7. Scram Protection
8. Low Failure Rate

decoiler uncoiler straightener feeder 3 in 1



Applications

-High Precision Electronic Parts
-Household Appliances
-Automobile Industry
-Aerospace industry



Production workshop:

decoiler straighter feeder production workshop

Package

1. Strong water resit bottom in plywood.

2. Corner protect by foam and fixed by a protective film.

3. All covered by a strong and hard protective film.

4. Inside steel frame protector.

5. Plywood packing and steel strip outside fixed the box.

6. Finishing packing by normal container or frame container.



HUAGONG Automation Machine Warranty

As a top Automation Machine brand in the world, HUAGONG promise:

1. 1 year for the whole HUAGONG  machine free warranty.

2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.

3. We provide machine-related parts service

4. After the warranty period expired, the HUAGONG buyer only needs to pay the actual maintenance cost.
