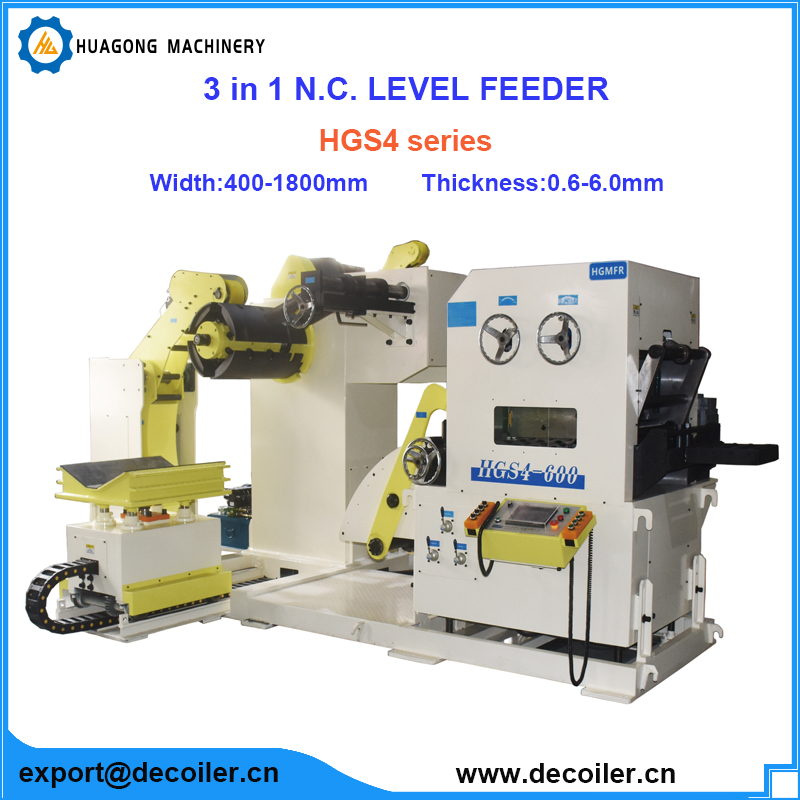

Model : HGS4 Decoiler Straightener Feeder Machine 3-in-1
3 In 1 NC Servo Straightener Feeder With Uncoiler
Save Looping Space, Increase Safety Coiled material is from uncoiler through both left and right free guide rollers with advance photo sensors keeps looping. Through the opener device and bending roller system feeding the coiled material from up to down, passing opener device, coil tip flatness device, pinch rollers, work rollers, feed rollers to make the coiled material passing in an excellent smooth feeding.
Specification of HGS4：
- Width :400-1800mm
Thickness: 0.6-6.0mm - Working rollers :7 (upper 4/lower 3)
Actual Picture of Equipment (For reference only)：
Technical Parameters
| Model – HGS4 Series | HGS4-400 | HGS4-600 | HGS4-800 | HGS4-1000 | HGS4-1300 |
| Material width (MM) | 75-400 | 75-600 | 75-800 | 75-1000 | 75-1300 |
| Material thickness (MM) | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 |
| Coil weight Max. (KG) | 3000KG | 4000KG | 5000KG | 8000KG | 10000KG |
| Coil O.D. Max (MM) | 1400 | 1400 | 1400 | 1400 | 1400 |
| Coil I.D. (MM) | 508 | 508 | 508 | 508 | 508 |
| Feed length (MM) | 9999.9 | 9999.9 | 9999.9 | 9999.9 | 9999.9 |
| Feed speed (m/min) | 24 | 24 | 24 | 24 | 24 |
| Work roller(pc) 2* | upper4/lower3 | upper4/lower3 | upper4/lower3 | upper4/lower3 | upper4/lower3 |
| Feed roller(set) | 1 | 1 | 1 | 1 | 1 |
| Main motor (KW) | AC4.4 | AC5.5 | AC5.5 | AC5.5 | AC7.5 |
| Decoil motor (KW) | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 |
| Coil expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Power supply (V) | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |
| Operating air (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Correction ability reference table (yield point stress 275N/mm2)
Features and Advantages of HuaGong 3-in-1 decoiler Straightener feeder
1. Direct Factory Sale
2. Quick Delivery
3. Simple Operation
4.Correction Accuracy
5. Fast and Efficient
6.Save Manpower
7. Scram Protection
8. Low Failure Rate
Applications
-High Precision Electronic Parts
-Household Appliances
-Automobile Industry
-Aerospace industry

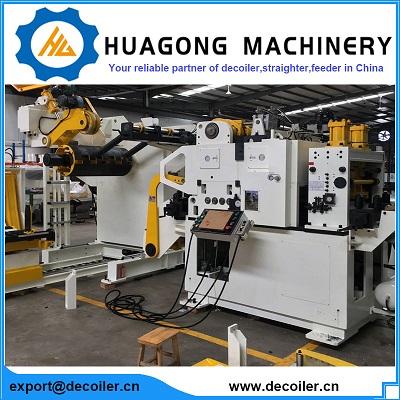

Production workshop:
Package
1. Strong water resit bottom in plywood.
2. Corner protect by foam and fixed by a protective film.
3. All covered by a strong and hard protective film.
4. Inside steel frame protector.
5. Plywood packing and steel strip outside fixed the box.
6. Finishing packing by normal container or frame container.
HUAGONG Automation Machine Warranty
As a top Automation Machine brand in the world, HUAGONG promise:
1. 1 year for the whole HUAGONG machine free warranty.
2. Long life-time maintenance, the after-sale department will offer 24/7 English online support.
3. We provide machine-related parts service
4. After the warranty period expired, the HUAGONG buyer only needs to pay the actual maintenance cost.
